An Example of What Happens When the Number of Keyboard Keys Goes UP | |||||||||||||||||||||
And the Number of Shifts Goes DOWN: The HP67 versus the HP97 | |||||||||||||||||||||

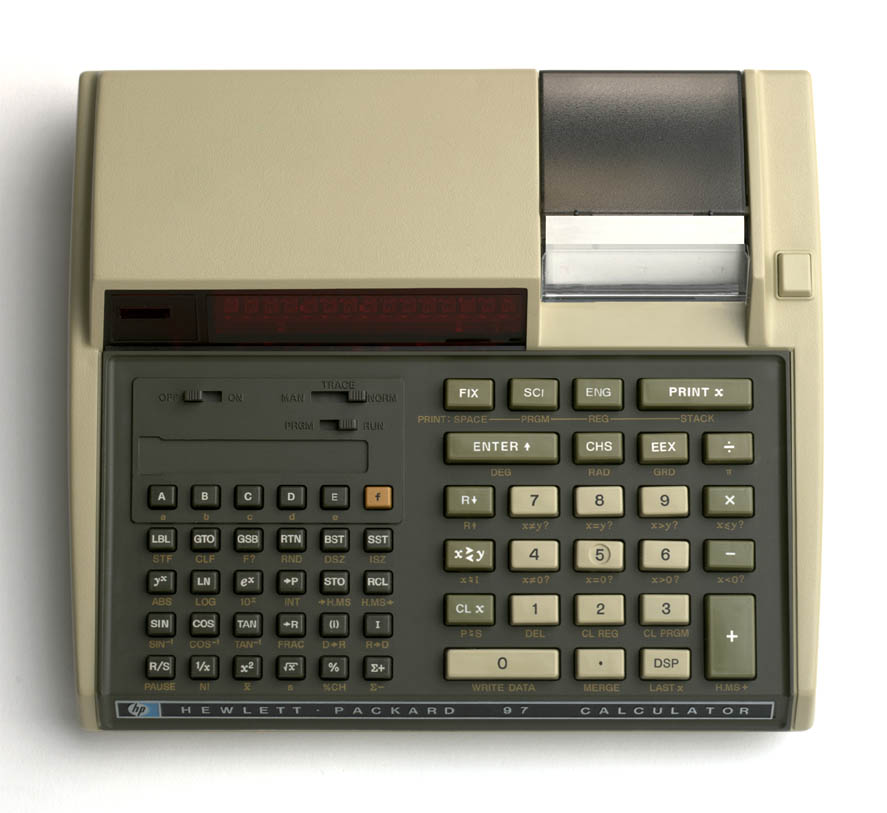

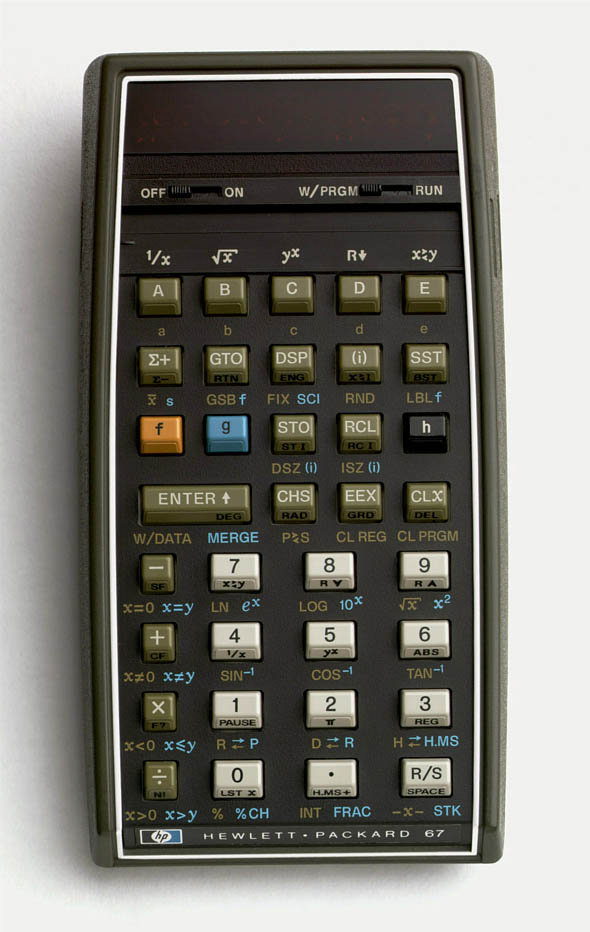

HP 67 | HP 97 | ||||||||||||||||||||
tot # keys | 35 | 56 | |||||||||||||||||||
# generic shift keys (i.e. "f", "g") | 3 | 1 | |||||||||||||||||||
f, g, h | f | ||||||||||||||||||||
# marked generically-shifted fcns (f ASIN, etc.) | 75 | 52 | |||||||||||||||||||
# unmarked generically-shifted fcns (f·¹ ASIN) | 0 | 0 | |||||||||||||||||||
# functional shift keys (i.e. "DSP", "STO") | 4 | 6 | |||||||||||||||||||
STO, RCL, DSP, GTO | LBL, GTO, GSB, STO, RCL, DS | ||||||||||||||||||||
# unmarked shifted fcns (DSP n, etc.) | 59 | 92 | |||||||||||||||||||
# 3-key shifted A | 3 | 1 | |||||||||||||||||||
SF, CF, F? 0-3 | DSZ (i), ISZ (i) | ||||||||||||||||||||
# fcns per 3-key shifted A | 4 | 2 | |||||||||||||||||||
# 3-key sequences B | 1 | 3 | |||||||||||||||||||
GTO f a-e | LBL f, GTO f, GSB f | ||||||||||||||||||||
# fcns per 3-key seq B | 5 | 5 | |||||||||||||||||||
# 3-key sequences C | 1 | 3 | |||||||||||||||||||
f LBL 0-9 A-E, g LBLf a-e | f STF, f CLF, f F? | ||||||||||||||||||||
# fcns per 3-key seq C | 20 | 4 | |||||||||||||||||||
# 3-key sequences D | 4 | 4 | |||||||||||||||||||
STO + - x ÷ 0-9, (i) | STO +, STO -, STO x, STO ÷ | ||||||||||||||||||||
# fcns per 3-key seq D | 11 | 11 | |||||||||||||||||||
# 3-key sequences E | 1 | ||||||||||||||||||||
f GSB 0-9,A-E,(i), g GSBf a-e | |||||||||||||||||||||
# fcns per 3-key seq E | 21 | ||||||||||||||||||||
# primary keys | 32 | 55 | tot # keys - tot # shift keys | ||||||||||||||||||
tot # primary fcns | 27 | 47 | # primary keys - # functional shift keys | ||||||||||||||||||
tot # shift keys | 7 | 7 | # generic shift keys + # functional shift keys | ||||||||||||||||||
tot # 2-key shifted fcns | 134 | 144 | # marked shifted fcns + # unmarked shifted fcns | ||||||||||||||||||
tot # 3-key sequences | 102 | 73 | (# 3-key sequences A * # fcns per 3-key seq A) + (# 3-key sequences B * # fcns per 3-key seq B)+…+( E) | ||||||||||||||||||
tot # functions | 263 | 264 | # primary keys + tot # 2-key shifted functions + tot # 3-key sequences | (Only the non-programmable PRINT PRGM added to HP97) | |||||||||||||||||
Keyboard Clutter (# fcns per key) | 3.257 | 1.964 | tot # fcns on keyboard / tot # keys | ||||||||||||||||||
Keystroke Count | 601 | 554 | # primary keys + (2 * tot # shifted functions) + (3 * tot # 3-key sequences) | ||||||||||||||||||
Keystroke count per function | 2.285 | 2.098 | Keystroke count / total # functions | ||||||||||||||||||
Ref: 65 Notes V4N1P8 | |||||||||||||||||||||
|
|||||||||||||||||||||
Detailed HP67 Keyboard Metrics Detailed HP97 Keyboard Metrics | |||||||||||||||||||||
